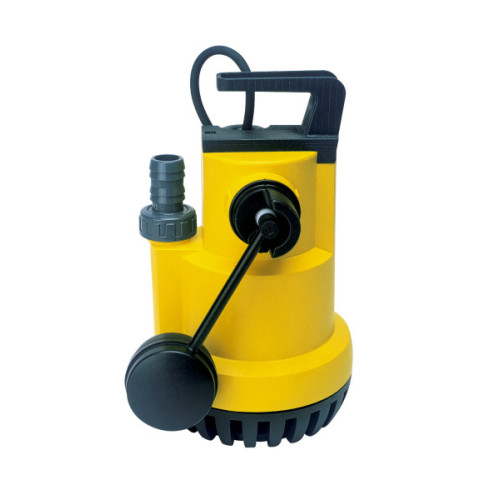

Portable submersible pump for wastewater.

Pumping for evacuation, transfer and emptying of wastewater and emptying of swimming pools. Applications like emptying of flooded garages or basements, drains, residential sumps, water tanks or transfer of water from tanks and cisterns.

FEATURES VIGILA

Electrical features

• Electrical isolation: F Class
• Motor type: Asynchronous
• Protection rating: IP68
• Reset: Automatic
• Service factor: S1

Materials

• Discharge body: Technopolymer
• Impeller/s: Technopolymer
• O-rings: NBR/EPDM
• Pump body: Technopolymer
• Pump shaft: Stainless steel AISI 420
• Suction body: Technopolymer

Manufacturing features

• Discharge connection type: Hose connector
• Discharge diameter: 32mm
• Maximum solids passage (mm): 10
• Motor cooling: Water
• Tightness by: Double lip seal

Limitations

• Maximum submersion (m): 7
• Water temperature (ºC): Max: 40
